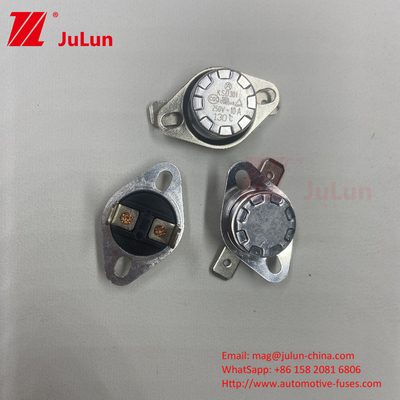

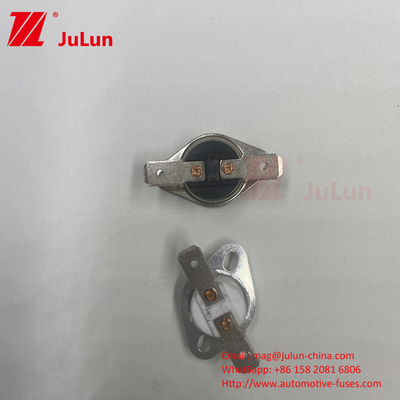

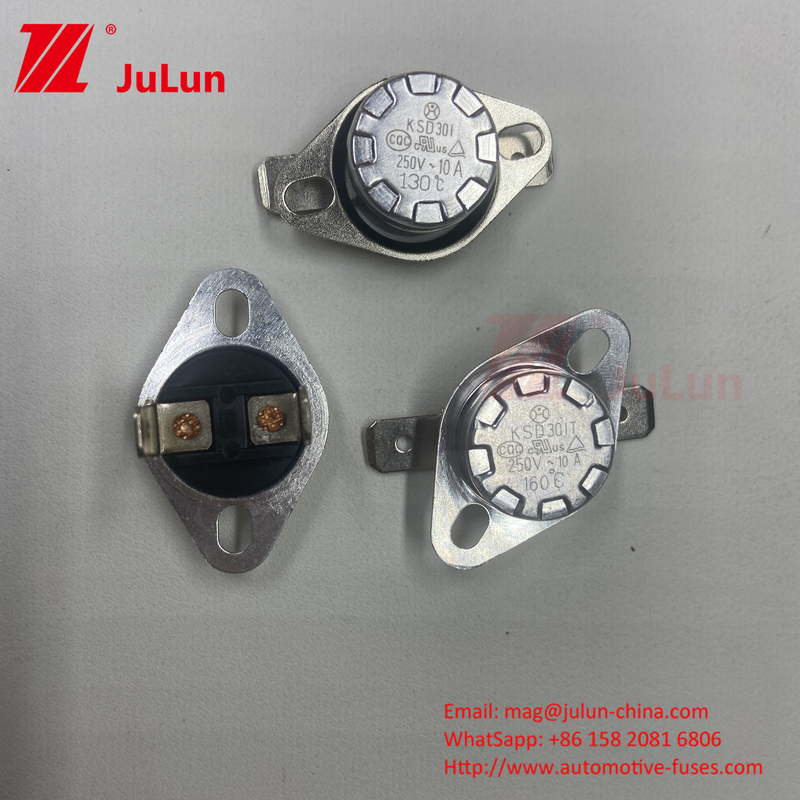

KSD301 / KSD302 Thermostat Normally Closed Jump Switch Wind Warmers Bimetal Snap Action Thermostat KSD301 Bimetal Therma
商品の詳細:
| Place of Origin: | China |
| ブランド名: | JULUN |
| 証明: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
お支払配送条件:
| Minimum Order Quantity: | 100 |
|---|---|
| 価格: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
詳細情報 |
|||
| Insulation resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) | Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
|---|---|---|---|
| ActionTemperature: | 0~250℃ | Model name: | KSD301 KSD302 KSD 130°C 92°C 55°C |
| House: | Plastic Or Ceramic. | Temperature sensor face: | Aluminum Cap Or Copper Head. |
| Recovery and action temperature difference: | 0 To 25 Degrees, Or According To Client's Request. | Two kinds of mounting bracket: | Movable Or Immovable |
製品の説明
Product Description:
This temperature sensor has an action temperature range of 0~250℃, which allows it to accurately measure the temperature of different household appliances. It is available in two different housings, including plastic and ceramic, which makes it suitable for use in different environments and applications.
The Thermistor Temperature Sensor offers a temperature deviation of ±3 / ±5 / ±10 Degree, which ensures accurate and reliable temperature measurements. It can also be customized according to client's request. This makes it suitable for use in various applications where precise temperature measurements are required.
The contact type of this temperature sensor is available in two different options, including Normally Closed or Normally Open. This makes it suitable for use in different applications where specific contact types are required.
This temperature sensor is easy to install and operate. It comes with an M6 thread that makes it easy to attach to different appliances and equipment. It is also highly durable and can withstand harsh environments and conditions, making it suitable for use in various applications.
In conclusion, the Thermistor Temperature Sensor is a highly reliable and accurate sensor that is suitable for measuring the temperature of various household appliances. Its wide range of voltage and current options, action temperature range, housings, temperature deviation, and contact type options make it suitable for different applications. Its easy installation, M6 thread, and durability make it a popular choice for use in different household appliances such as refrigerators, air conditioners, and temperature controllers.
Features:
- Product Name: Thermistor Temperature Sensor
- Temperature sensor face: Aluminum Cap Or Copper Head.
- Model name:
- KSD301
- KSD302
- KSD 130°C
- KSD 92°C
- KSD 55°C
- Circuit resistance: ≤50mΩ (Initial Value)
- Life cycle: ≥100000 Times
- Insulation resistance: AC50Hz 1500V / Min, No Breakdown Blinding (Normal State)
- Features:
- Hot Water Kettle
- Jump switch
- Temperature controller
Technical Parameters:
| Model Name | Action Temperature | Temperature Deviation | Recovery and Action Temperature Difference | Insulation Resistance | Circuit Resistance | Voltage & Current | Terminal Type | Terminal Angle | Mounting Bracket | Life Cycle |
|---|---|---|---|---|---|---|---|---|---|---|
| KSD301 | 0~250℃ | ±3 / ±5 / ±10 Degree Or According To Client's Request | 0 To 25 Degrees, Or According To Client's Request | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) | ≤50mΩ (Initial Value) | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm | Bending Angle: 0~90°C Optional | Movable Or Immovable | ≥100000 Times |
| KSD302 | 0~250℃ | ±3 / ±5 / ±10 Degree Or According To Client's Request | 0 To 25 Degrees, Or According To Client's Request | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) | ≤50mΩ (Initial Value) | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm | Bending Angle: 0~90°C Optional | Movable Or Immovable | ≥100000 Times |
| KSD 130°C | 130℃ | ±3 / ±5 / ±10 Degree Or According To Client's Request | 0 To 25 Degrees, Or According To Client's Request | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) | ≤50mΩ (Initial Value) | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm | Bending Angle: 0~90°C Optional | Movable Or Immovable | ≥100000 Times |
| KSD 92°C | 92℃ | ±3 / ±5 / ±10 Degree Or According To Client's Request | 0 To 25 Degrees, Or According To Client's Request | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) | ≤50mΩ (Initial Value) | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm | Bending Angle: 0~90°C Optional | Movable Or Immovable | ≥100000 Times |
| KSD 55°C | 55℃ | ±3 / ±5 / ±10 Degree Or According To Client's Request | 0 To 25 Degrees, Or According To Client's Request | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) | ≤50mΩ (Initial Value) | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm | Bending Angle: 0~90°C Optional | Movable Or Immovable | ≥100000 Times |
Applications:
The JULUN Thermistor Temperature Sensor, model number KSD301 KSD302 Bimetal Thermostat, is a high-quality product from China with CE, UL, and CCC certifications. The product has a minimum order quantity of 100 units and is priced between 0.7 to 1.5 dollars per unit. The packaging details include a carton and the delivery time takes 1 to 2 weeks. Payment terms include T-T and the supply ability is 1000K/times.
The Terminal Type of the JULUN Thermistor Temperature Sensor includes 187series of 4.8*0.5mm and 4.8*0.8mm, 250 Series of 6.3*0.8mm, and the Terminal Angle has a bending angle of 0~90°C Optional. The Circuit resistance is ≤50mΩ (Initial Value), and the Voltage & Current includes AC 125V Max 15A; AC250V 5A 10A 15A Max 16A. The Temperature deviation is ±3 / ±5 / ±10 Degree or according to the client's request, and the Temperature sensor face includes Aluminum Cap or Copper Head.
The JULUN Thermistor Temperature Sensor can be applied in various scenarios that require temperature control. The product is suitable for hot water kettles, coffee makers, ovens, and other household appliances that require temperature control. The threaded brass feature makes it easy to install and use.
The JULUN Thermistor Temperature Sensor can handle a maximum current of 10~20A, making it suitable for use in industrial applications that require high current. The product has a wide range of applications, including temperature regulation in incubators, refrigeration equipment, and air conditioning systems.
Customization:
Support and Services:
Product Technical Support:
- Assistance with product selection and application
- Technical specifications and performance data
- Troubleshooting and problem-solving
- Warranty and repair services
Product Services:
- Custom design and manufacturing
- Calibration and testing
- Installation and commissioning
- Training and education
Packing and Shipping:
Product Packaging:
- The Thermistor Temperature Sensor will be carefully packed in a sturdy cardboard box to ensure its safe transportation.
- The product will be wrapped in bubble wrap to provide extra protection against any external shocks or impacts.
- A user manual will be included in the package to provide instructions on how to use the sensor.
Shipping:
- The product will be shipped via a reliable courier service.
- Customers will be provided with a tracking number to track their package during shipping.
- We aim to ship the product within 24 hours of receiving the order.
- Shipping times will vary depending on the destination, but customers can expect to receive their product within 3-7 days.
FAQ:
Q: What is the brand name of the thermistor temperature sensor?
A: The brand name of the thermistor temperature sensor is JULUN.
Q: What is the model number of the thermistor temperature sensor?
A: The model number of the thermistor temperature sensor is KSD301 KSD302 Bimetal Thermostat.
Q: Where is the thermistor temperature sensor manufactured?
A: The thermistor temperature sensor is manufactured in China.
Q: What certifications does the thermistor temperature sensor have?
A: The thermistor temperature sensor is CE UL CCC certified.
Q: What is the minimum order quantity for the thermistor temperature sensor?
A: The minimum order quantity for the thermistor temperature sensor is 100.
Q: What is the price range for the thermistor temperature sensor?
A: The price range for the thermistor temperature sensor is between 0.7~1.5.
Q: What are the packaging details for the thermistor temperature sensor?
A: The packaging details for the thermistor temperature sensor is in a carton.
Q: What is the delivery time for the thermistor temperature sensor?
A: The delivery time for the thermistor temperature sensor is 1~2 weeks.
Q: What are the payment terms for the thermistor temperature sensor?
A: The payment terms for the thermistor temperature sensor is T-T.
Q: What is the supply ability for the thermistor temperature sensor?
A: The supply ability for the thermistor temperature sensor is 1000K/times.
