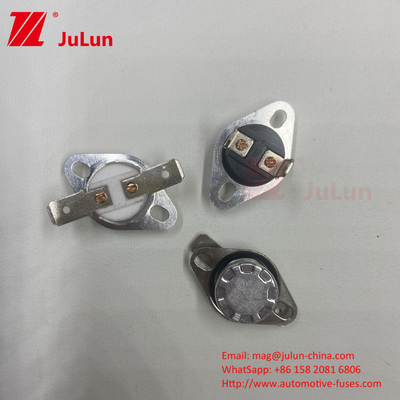

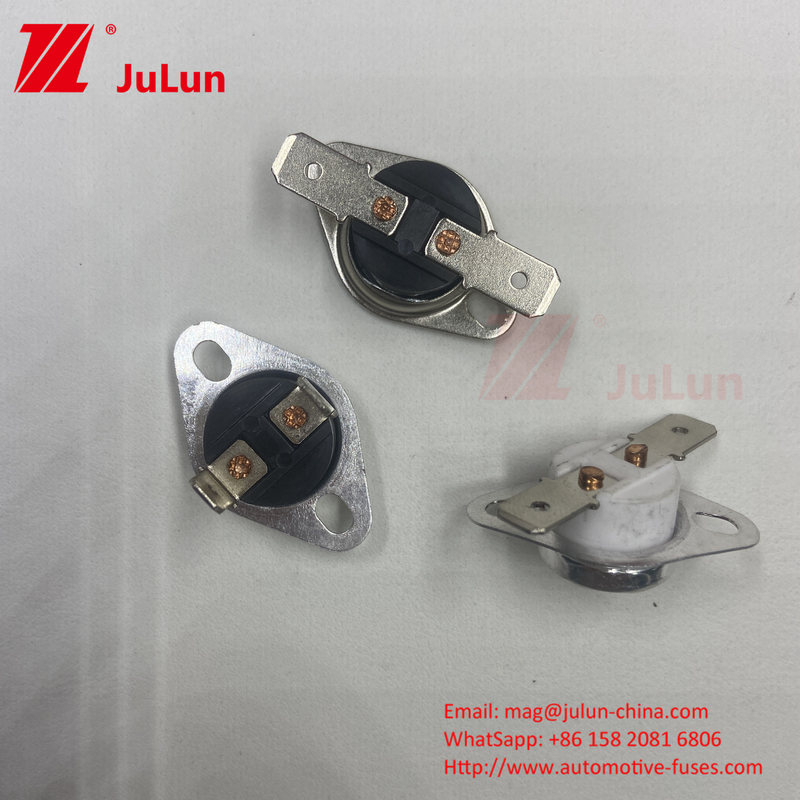

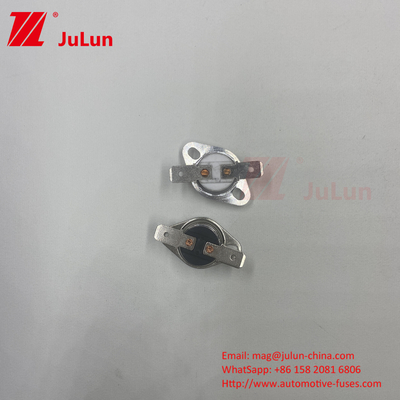

Temperature Control Switch Normally Closed / Open KSD301 Bimetal Thermostat Manual Reset Thermal Cut Out Switch
商品の詳細:
| Place of Origin: | China |
| ブランド名: | JULUN |
| 証明: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
お支払配送条件:
| Minimum Order Quantity: | 100 |
|---|---|
| 価格: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
詳細情報 |
|||
| Insulation resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) | Temperature sensor face: | Aluminum Cap Or Copper Head. |
|---|---|---|---|
| Contact type: | Normally Closed Or Normally Open | Terminal type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | Circuit resistance: | ≤50mΩ (Initial Value) |
| Life cycle: | ≥100000 Times | ActionTemperature: | 0~250℃ |
製品の説明
Product Description:
This temperature sensor has a long life cycle of at least 100,000 times, making it a durable and reliable choice for monitoring temperature over an extended period. With an action temperature range of 0~250℃, it is highly suitable for use in hot water kettles, where precise temperature control is essential for the best brewing experience.
The Thermistor Temperature Sensor is available with two kinds of mounting bracket: movable or immovable, providing flexibility and ease of installation in a variety of settings. The sensor is housed in either plastic or ceramic, depending on your specific needs and requirements.
With a rating of 10A 250V, this temperature sensor can handle high electrical loads, making it ideal for use in demanding applications. Whether you're monitoring temperature in a laboratory, industrial process, or hot water kettle, this sensor delivers accurate and reliable results every time.
Features:
- Product Name: Thermistor Temperature Sensor
- Two kinds of mounting bracket: Movable Or Immovable
- Terminal type:
- A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm
- B. Terminal Angle: Bending Angle: 0~90°C Optional
- Temperature sensor face: Aluminum Cap Or Copper Head
- Circuit resistance: ≤50mΩ (Initial Value)
- Temperature deviation: ±3 / ±5 / ±10 Degree Or According To Client's Request
This Thermistor Temperature Sensor is ideal for use in incubators, temperature controllers, and temperature control switches.
Technical Parameters:
| Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Temperature sensor face: | Aluminum Cap Or Copper Head |
| Terminal type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| ActionTemperature: | 0~250℃ |
| House: | Plastic Or Ceramic |
| Life cycle: | ≥100000 Times |
| Insulation resistance: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Recovery and action temperature difference: | 0 To 25 Degrees, Or According To Client's Request |
| Temperature deviation: | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Circuit resistance: | ≤50mΩ (Initial Value) |
Keywords: incubator, KSD301
Applications:
The JULUN thermistor temperature sensor is ideal for a wide range of applications. It is commonly used in refrigerators, air conditioners, water heaters, and other household appliances. Its threaded brass construction makes it easy to install and use. Additionally, the product is available in two kinds of mounting brackets: movable or immovable. This makes it adaptable to a variety of different products.
The JULUN thermistor temperature sensor is particularly well-suited to applications where temperature control is critical. For example, it can be used in an incubator to maintain a consistent temperature for eggs or other delicate materials. The product's temperature deviation of ±3 / ±5 / ±10 Degree, or according to the client's request, ensures that the temperature remains stable and within the desired range. The recovery and action temperature difference of 0 to 25 degrees, or according to the client's request, further enhances the product's ability to maintain a consistent temperature.
The JULUN thermistor temperature sensor has a circuit resistance of ≤50mΩ (initial value), ensuring that it has a long lifespan and is reliable in operation. Overall, the JULUN thermistor temperature sensor is a high-quality product that is suitable for a wide range of applications. Its affordability, adaptability, and reliability make it an ideal choice for those seeking a cost-effective solution to temperature control.
Customization:
Support and Services:
The Thermistor Temperature Sensor product comes with comprehensive technical support and services to ensure that you can get the most out of your investment. Our team of experts is available to provide you with guidance and assistance on everything from installation and setup to troubleshooting and maintenance. Additionally, we offer a range of services, including calibration, repair, and replacement, to help keep your sensor functioning at its best. Whether you're a seasoned professional or just getting started with temperature sensing, our technical support and services are designed to meet your needs and exceed your expectations.
Packing and Shipping:
Product Packaging:
The Thermistor Temperature Sensor will be packaged in a sturdy cardboard box to ensure it arrives to you in perfect condition. The product will be placed in a clear plastic bag with a label indicating the product name and specifications. A user manual will also be included inside the box.
Shipping:
The product will be shipped via a reliable courier service. The shipping cost will be calculated based on the destination and weight of the package. Once your order has been shipped, you will receive a tracking number to monitor the status of your delivery. Delivery time will vary depending on your location, but we strive to ensure timely delivery.
FAQ:
Q: What is the brand name of the Thermistor Temperature Sensor?
A: The brand name of the Thermistor Temperature Sensor is JULUN.
Q: What is the model number of the Thermistor Temperature Sensor?
A: The model number of the Thermistor Temperature Sensor is KSD301 KSD302 Bimetal Thermostat.
Q: Where is the Thermistor Temperature Sensor manufactured?
A: The Thermistor Temperature Sensor is manufactured in China.
Q: What certifications does the Thermistor Temperature Sensor have?
A: The Thermistor Temperature Sensor has CE, UL, and CCC certifications.
Q: What is the minimum order quantity for the Thermistor Temperature Sensor?
A: The minimum order quantity for the Thermistor Temperature Sensor is 100.
Q: What is the price range of the Thermistor Temperature Sensor?
A: The price range of the Thermistor Temperature Sensor is 0.7~1.5.
Q: What are the packaging details for the Thermistor Temperature Sensor?
A: The packaging details for the Thermistor Temperature Sensor are carton.
Q: What is the delivery time for the Thermistor Temperature Sensor?
A: The delivery time for the Thermistor Temperature Sensor is 1~2 weeks.
Q: What are the payment terms for the Thermistor Temperature Sensor?
A: The payment terms for the Thermistor Temperature Sensor are T-T.
Q: What is the supply ability for the Thermistor Temperature Sensor?
A: The supply ability for the Thermistor Temperature Sensor is 1000K/times.
