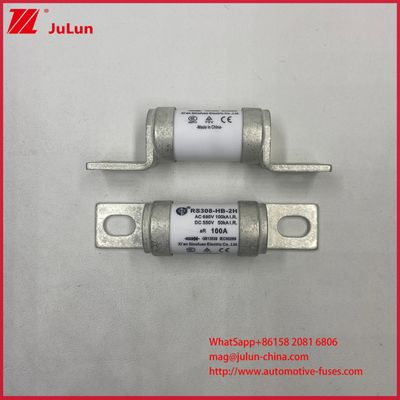

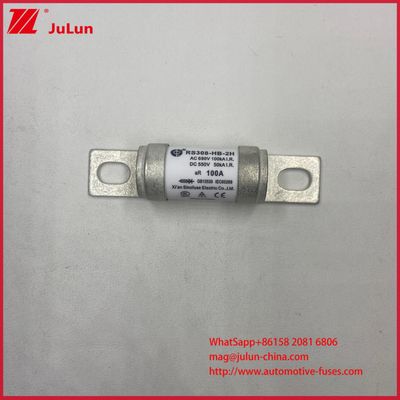

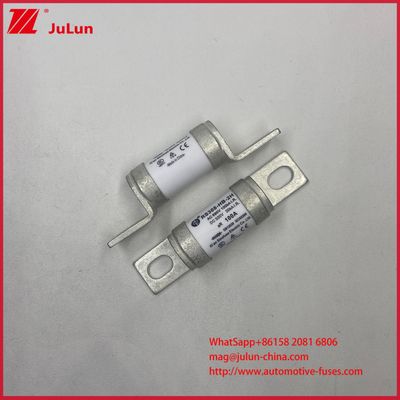

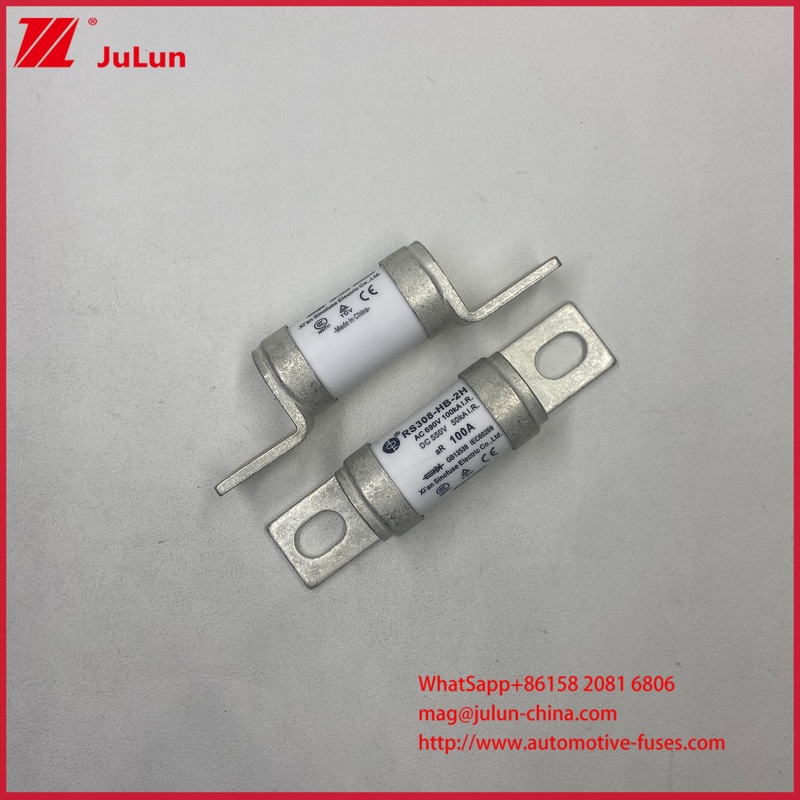

Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | SINO FUSE |
| 証明: | UL |
| モデル番号: | RS308-HB-2H 63A 80A |
お支払配送条件:
| Minimum Order Quantity: | 10 |
|---|---|
| 価格: | 5~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| 支払条件: | T-T,T/T |
| Supply Ability: | 1000K/PCS |
|
詳細情報 |
|||
| 定格電流: | 10A～710A | 取付ボルト: | M6 M8 |
|---|---|---|---|
| 取り付け方法: | ネジボルト | 材料: | 陶器 銅 銀 クォーツ 砂 金 |
| 特徴: | 短回路保護用の高電流指定型小サイズ | 破壊能力: | AC100KA@COSφ0.2、DC50KA@L/ R≦10ms |
| パフォーマンスが指すのは、: | IEC60269、環境信頼性はISO8820、JASO D622、GB/T31465に準拠 | 適用プロダクト: | EV トラクションシステム,パワー変換,エネルギー貯蔵,車充電器など |
| ハイライト: | ceramic automotive fuses for round pipe,RS308-HB bolt connection fuses,200A 550VDC ceramic fuses |
||
製品の説明
Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
In summary, the Ceramic Automotive Fuses combine compactness with high current capacity, robust ceramic construction, and dependable bolt-connected fast fuse mounting, making them an excellent choice for modern automotive electrical protection. Their compliance with international performance and environmental standards assures users of their quality and reliability. Whether for passenger cars, commercial vehicles, or specialized automotive equipment, these Ceramic Car Fuses provide effective and durable short circuit protection, helping to maintain electrical system integrity and vehicle safety.
Technical Parameters
| Performance Standard | IEC60269 |
|---|---|
| Environmental Reliability | Complies with ISO8820, JASO D622, and GB/T31465 |
| Rated Voltage | AC690V / DC550V |
| Installation Bolt | M6, M8 |
| Rated Current | 10A to 710A |
| Application | EV Traction System, Power Conversion, Energy Storage, Car Charger, and etc. |
| Mounting Method | Screw Bolt |
| Installation Mode | Recommended Tight Torque |
| Breaking Capacity | AC 100KA @ COSφ 0.2, DC 50KA @ L/R ≤ 10ms |
| Feature | Small Size with High Current Rating for Short Circuit Protection |
| Usage Category | AR |
